Product Features

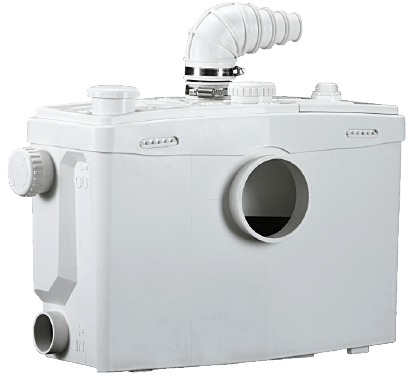

FLO1200-AG-M
- 4 inlets + 2 outlets，choose the outlet according to convenience.

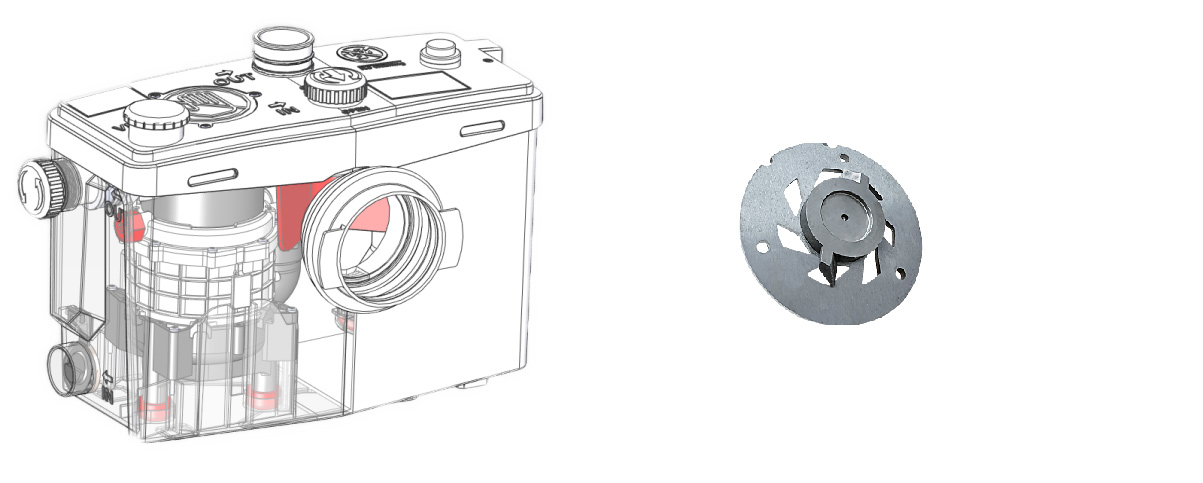

- Using grinding blade, can cut sanitary napkin, towel, condoms etc.
- With 1 pc repair panel, can easy to take out the block.
- With repair panel, can take out the whole switch part.

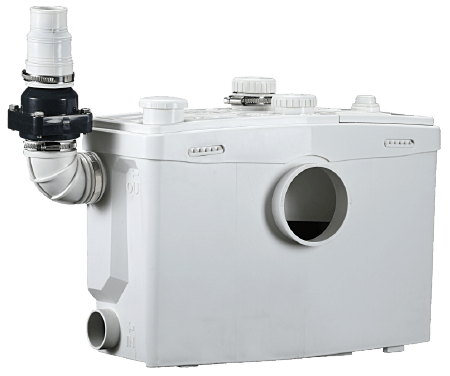

FLO1200-AGS-M
- 4 inlets + 2 outlets, choose the outlet according to convenience.
- Using grinding blade, can cut sanitary napkin, towel, condoms etc.
- With 1 pc repair panel, can easy to take out the block.
- With repair panel, can take out the whole switch part.
- Delay function, using PCB can extend the working time of the motor, drain more thoroughly. When the water intake is small, reduce the number of motor starts.
| Inlet Pipe Diameter: | 100mm/3×40mm | 4″/3×1-1/2″ |
| Noise: | 35 ~ 50dB | |

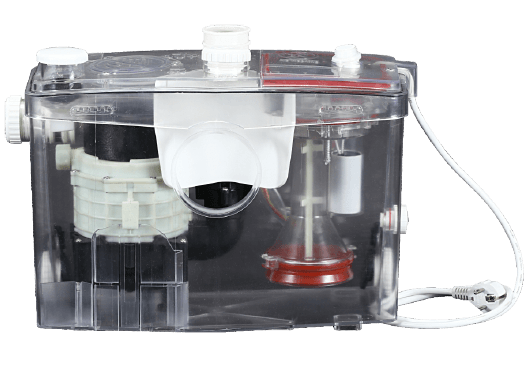

Product Description

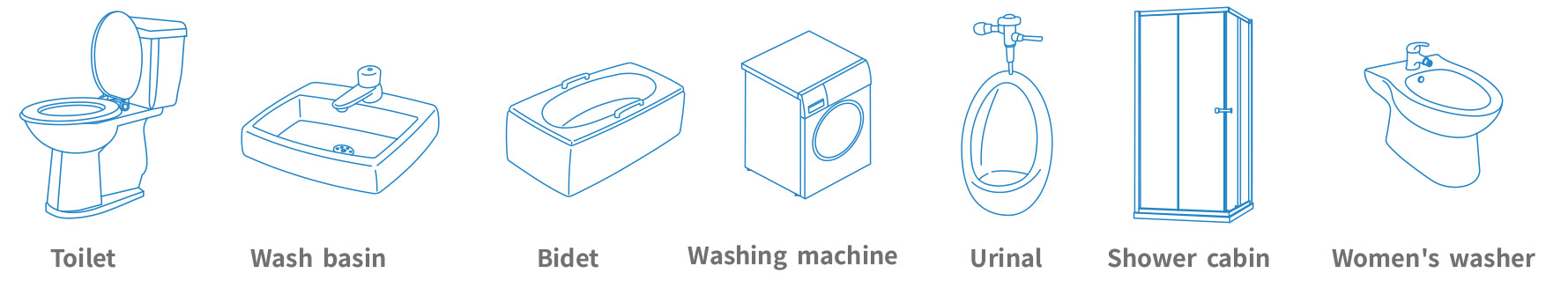

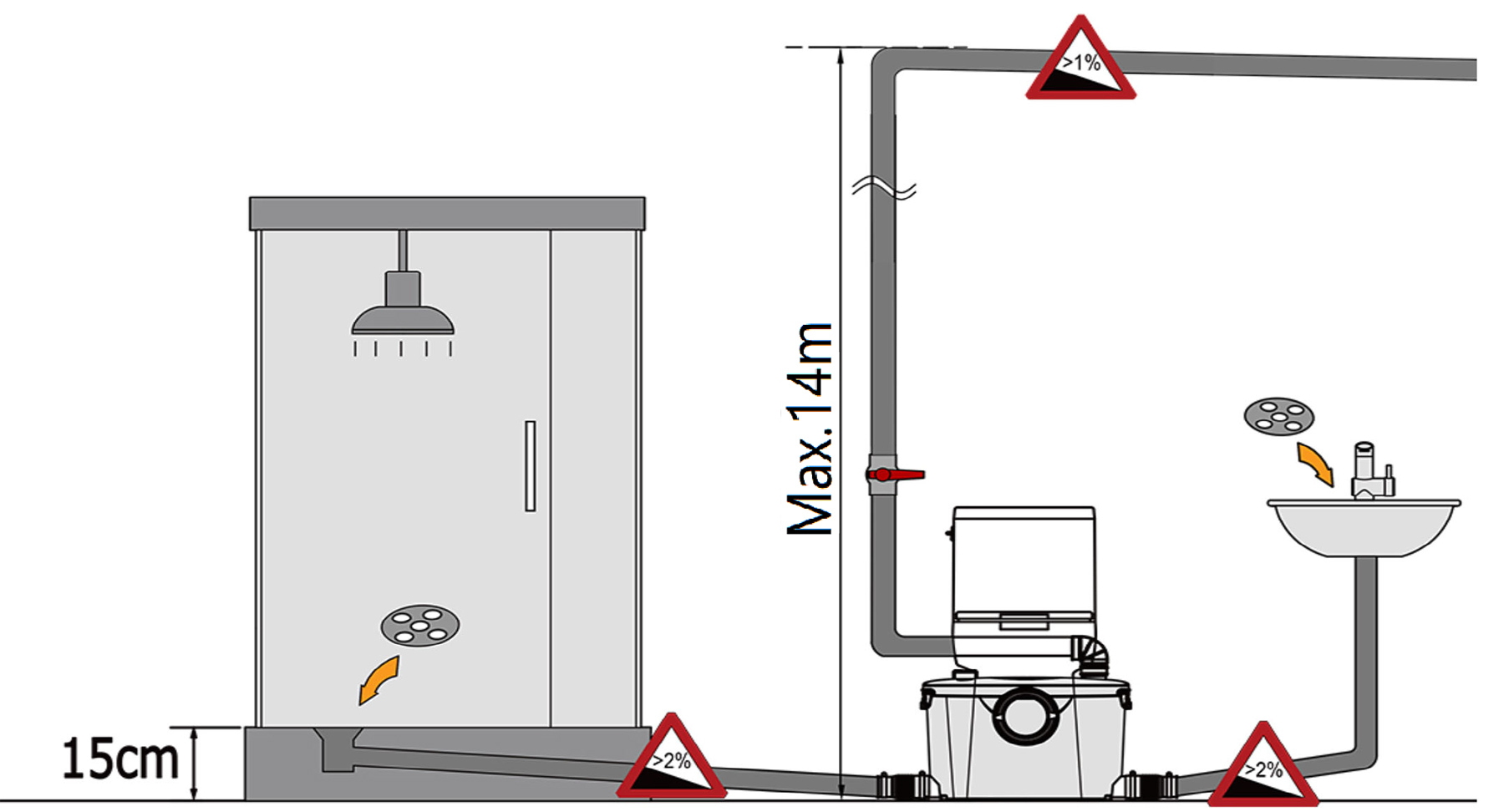

Possible Connections

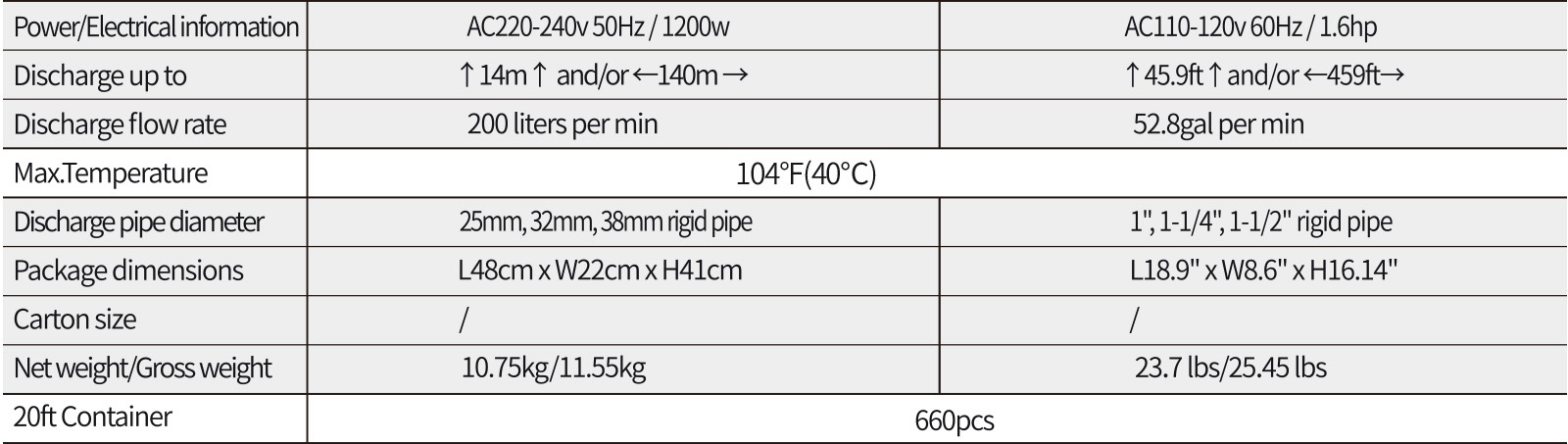

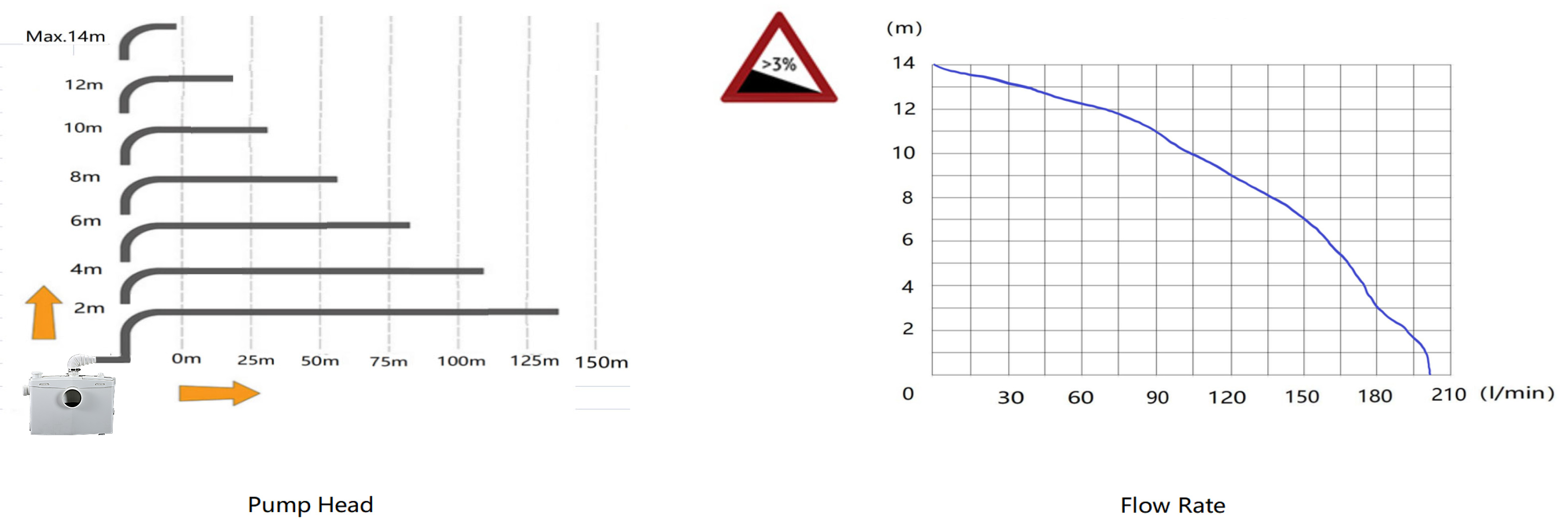

technical parameter

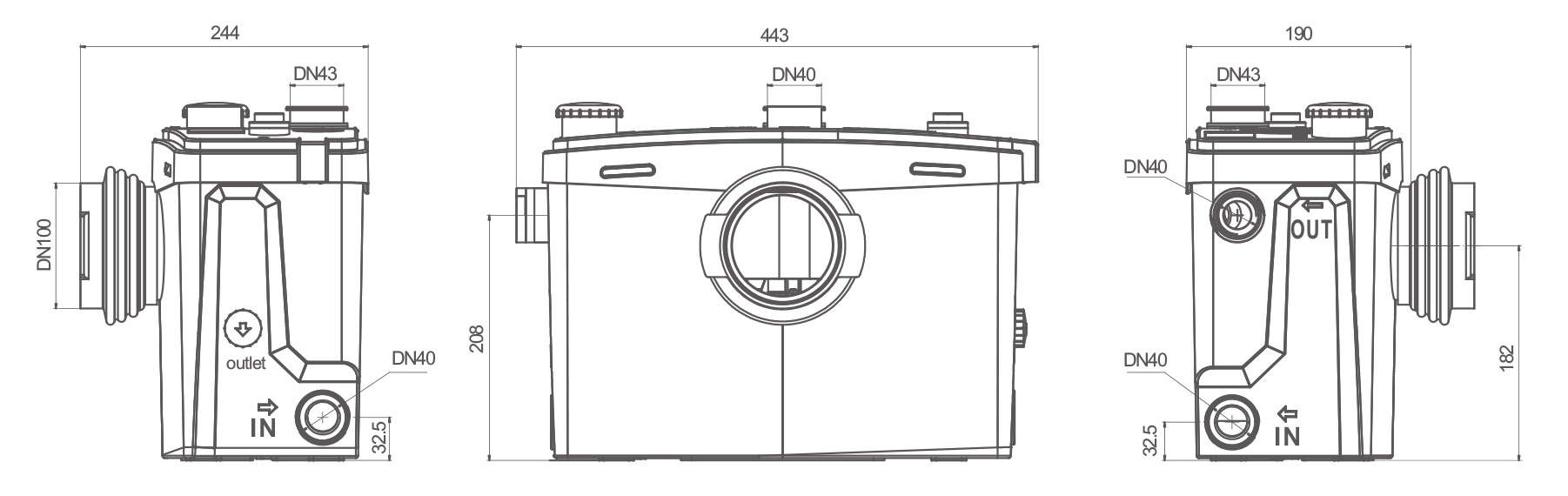

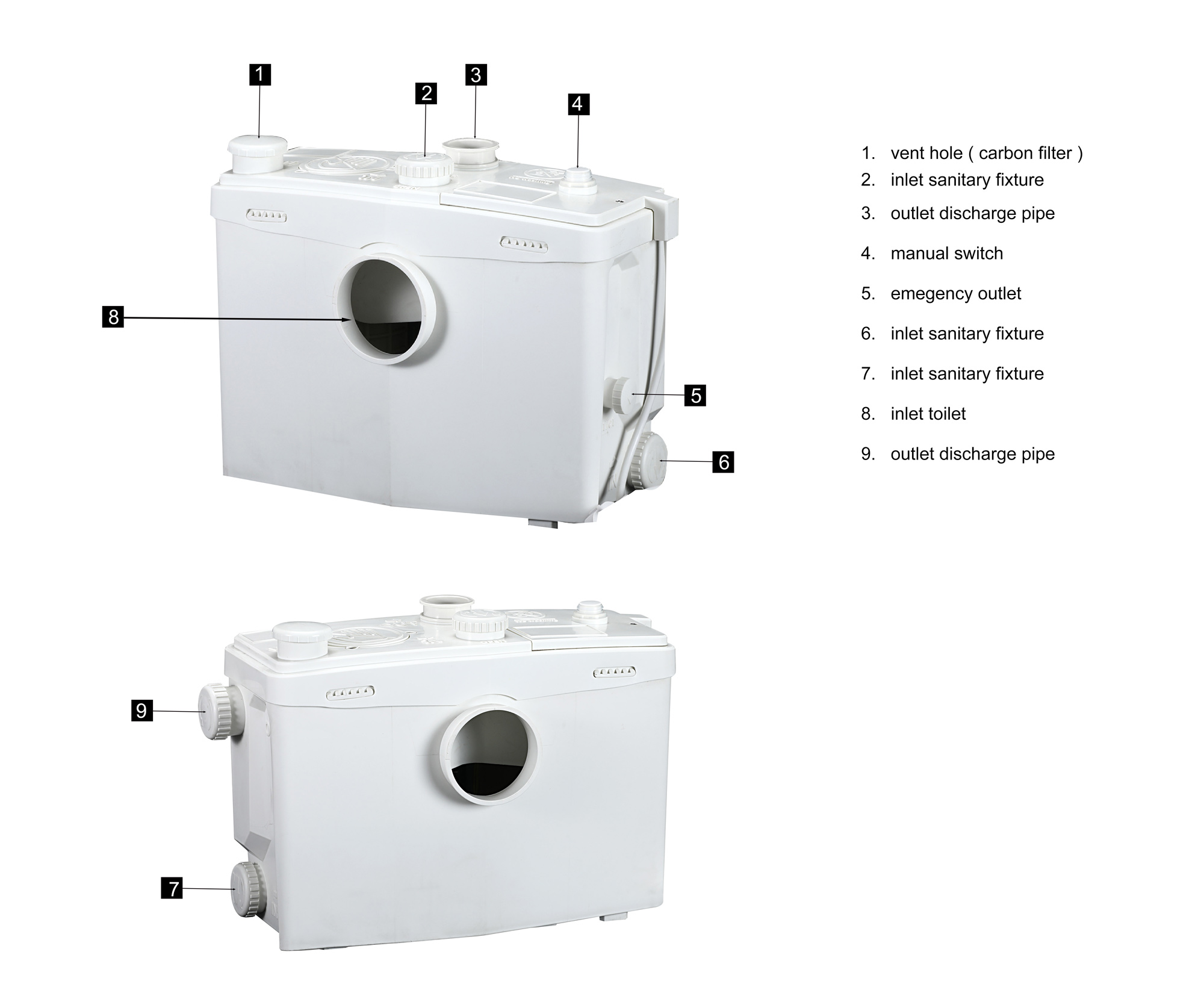

Interface diagram
